diy tone arm from zildjan maple drumstick to golf shaft armwand

View previous topic View next topic Go down

diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by mierock on Sat Jun 27, 2015 2:35 am

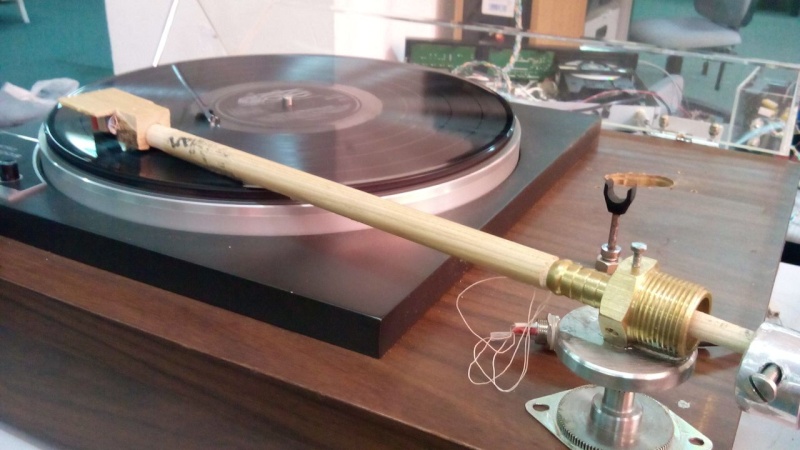

my diy tonearm. i am using zildjan maple drumstick in a unipivot. i have try many things for the pivot  as found in the net. i found the sound rank as

1. diamond pivot or any hard stone. i am using 0.01ct which is still cheap.
2. hard sharp steel harden screw or stainless steel sharp pin
3. ball bearing including parker ball point with or without oil or grease


Last edited by mierock on Tue Dec 20, 2016 9:08 pm; edited 3 times in total

mierock
Frequent Contributor
Frequent Contributor

Number of posts : 163
Age : 49
Location : bangi, selangor
Registration date : 2009-03-04

Back to top Go down

Re: diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by mierock on Sat Jun 27, 2015 2:42 am



see simple thing works.....


diy phono amp + diy intergrated amp + micro seiki tt + micro seiki m2100 cart + signet sl256 (for sale.... anybody)

http://www.hifi4sale.net/t47320-speaker-signet-sl256



Wire used is a litz wire given to me by a nice guy h4s@somkiet, who is responsible to all this nasty work. I really appreciate your assistance and encouragement,  my hifi cousin somkiet. He got plenty of commercial grade diy.



ahmad nawab instrumental. i am keeping my rb300 nicely as a collection, services unneeded anymore. will make this arm presentable and bring it home. will use it along with my trusty rotel 850.


i sold my nice mc audio technica cart because it dig deep into groove, good with new lp but koyak with malay lp.


Last edited by mierock on Sun Jun 28, 2015 8:22 pm; edited 3 times in total (Reason for editing : More picture & vid)

mierock
Frequent Contributor
Frequent Contributor

Number of posts : 163
Age : 49
Location : bangi, selangor
Registration date : 2009-03-04

Back to top Go down

arm on lenco l75

Post by mierock on Wed Jul 01, 2015 8:05 am



never thought that a turntable will give a different sound. learned something.... why some people love lenco and why my hifi buddy somkiet love micro seiki.

next coming project is to replace lenco arm with semi pivot arm to reduce azimuth error. replacing the lenco arm base and replace with pivot. armwand is still drumstick but will but a golf club soon, will buy from a trift shop  or anybody want to donate a broken carbon fibre golf club.... will use the same length and offset angle. soon ......

mierock
Frequent Contributor
Frequent Contributor

Number of posts : 163
Age : 49
Location : bangi, selangor
Registration date : 2009-03-04

Back to top Go down

Re: diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by Somkiet on Mon Jul 06, 2015 7:57 pm

Nicely done...!
avatar
Somkiet
Frequent Contributor
Frequent Contributor

Number of posts : 215
Age : 57
Location : Kuala Lumpur
Registration date : 2011-02-06

Character sheet
Source(s):
Amplification:
Speakers:

Back to top Go down

Re: diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by sph on Sat Oct 31, 2015 11:31 pm

My DIY Well Tempered tonearm on a re-plinthed Lenco75.


sph
Frequent Contributor
Frequent Contributor

Number of posts : 325
Age : 58
Location : PJ
Registration date : 2009-03-04

Character sheet
Source(s):
Amplification:
Speakers:

Back to top Go down

Re: diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by vt4c on Sun Nov 01, 2015 1:59 pm

Congratulation...Well done! cheers
avatar
vt4c
Frequent Contributor
Frequent Contributor

Number of posts : 131
Age : 48
Location : M'sia
Registration date : 2009-05-09

Back to top Go down

Re: diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by mierock on Wed Nov 04, 2015 9:13 pm

wahh.... terbaek sph. show some more pics please. verrrry addictive!

mierock
Frequent Contributor
Frequent Contributor

Number of posts : 163
Age : 49
Location : bangi, selangor
Registration date : 2009-03-04

Back to top Go down

Re: diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by sph on Wed Nov 04, 2015 10:40 pm

It started off as an original Lenco 75.

" />

Then, decided to make a top plate for it. Came this ...
[url=][/url]

Next was the tonearm. Searched the Internet for ideas and came up with the Well Tempered tonearm. I like the uniqueness and simplicity of the arm. Golf ball and a graphite shaft for the arm.
" />

Building the plinth.

" />

The cartridge, a AT95e, modified with an aluminum body.
" />

Put together....
" />

sph
Frequent Contributor
Frequent Contributor

Number of posts : 325
Age : 58
Location : PJ
Registration date : 2009-03-04

Character sheet
Source(s):
Amplification:
Speakers:

Back to top Go down

Re: diy tone arm from zildjan maple drumstick to golf shaft armwand

Post by mierock on Sat Nov 07, 2015 2:11 pm

sifu

which one would u prefer, heavy tonearm or light tonearm?

i am going to build both, may be someday and compare them. for now, trying to build s shape tonearm with nyatoh

mierock
Frequent Contributor
Frequent Contributor

Number of posts : 163
Age : 49
Location : bangi, selangor
Registration date : 2009-03-04

Back to top Go down

low mass armwand

Post by mierock on Tue Dec 20, 2016 9:01 pm

replace the zildjan with callaway graphite golf shaft. very light. soft wood for damping the vibration. i am using harden steel from dart shaft as my pivot.

i like it better than zildjan armwand.



during testing. no adjustment at all.



i am using denon dl60 (damn! this is good, may be as good as my mod at95 black body with atn95 stylus)


hope all tt lovers would like to try this as this is not that difficult to build.

mierock
Frequent Contributor
Frequent Contributor

Number of posts : 163
Age : 49
Location : bangi, selangor
Registration date : 2009-03-04

Back to top Go down
